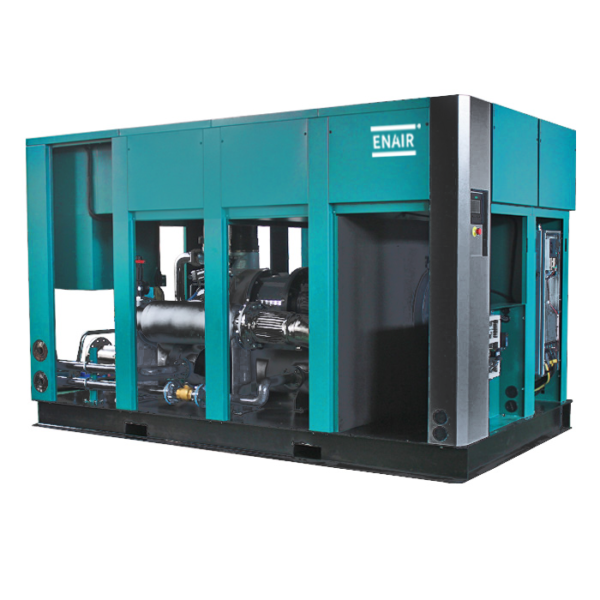

ENAIR Tech Dry Oil Free Compressor (single satge, 2 stages and 3 stages )

Categories: , Product ID: 7326

Description

1. Pressure range: 0.5-4.0 mpa, ndustry-leading stages: 1-3 stages.

air end quality assurance, single-stage compression or two-stage compression energy-saving , and the airend itself is 15% – 20% more energy-saving than ordinary single-stage; accept IR air end customized.

2. 100% Oil-Free Air: Meets ISO 8573-1:2010 Class 0 air quality standards for processes within the food and beverage, pharmaceutical, textile, and electronics industries

3. Energy Efficiency: Revolutionary dual motor and “digital gearbox” design continuously monitors and adjusts airend speeds, resulting in maximum efficiency

4. Enhanced Reliability: Unique sealing design, premium airend coating, and robust components maximize uptime and ensure trouble-free operation

5. Innovative Design: Enair Tech oil free compressor adopts patented air separation technology, the oil-bearing state reaches the degree of natural air state, which can completely replace dry oil-free. The machine adopts cold dryer + cyclone technology to remove water instead of traditional interception filtration, and the effect is 5-10 times better than traditional water removal;

6. Special working condition, special compressors for gas, please write to us.

ENAIR OIL FREE SINGLE STAGE



NO. Power (kw) Speed (rpm) Flowing rate (m³/min) Working pressure (Mpa) Cooling way Cooling water volumn（T/H)/Inlet temp ≦30℃ Lubrication oil （L） L（mm） W (mm） H（mm） Air outlet Inlet diameter (mm)
1 37 2970 6 0.8 w/air 7 26 1800 1500 1400 G1¼” 40
2 45 2970 7 0.8 w/air 9 30 1900 1500 1600 G1¼” 60
3 55 2970 10 0.8 w/air 10 35 1900 1500 1600 G1¼” 60
4 75 2970 13 0.8 w/air 12 45 2200 1700 1800 G1½” 80
5 90 2970 15.5 0.8 w/air 18 54 2200 1700 1800 G1½” 80
6 110 2970 20 0.8 w/air 20 70 3100 2300 2100 G2″ 80
7 132 2970 22 0.8 w/air 24 72 3100 2300 2100 G2½” 80
8 160 2970 25 0.8 w/air 30 80 3200 2550 2100 G2½” 100
9 185 2970 35 0.8 w/air 35 100 3200 2550 2100 G2½” 100
10 220 2970 36 0.8 w/air 42 130 3500 2700 2300 G3″ 80*2
11 250 2970 40 0.8 w/air 48 130 3600 2850 2300 G3½” 80*2



ENAIR OIL FREE TWO STAGES ACCEPT CUSTOMZIED HIGH AND LOW PRESSURE



NO. Power (kw) Speed (rpm) Flowing rate (m³/min) Working pressure (Mpa) Cooling way Cooling water volumn（T/H)/Inlet temp ≦30℃ Lubrication oil （L） L(mm) W(mm) H(mm) Air outlet Inlet diameter (mm)
1 15 1480 2.9 0.8 w/air 2.5 18 1600 1100 1400 G1″ 40
2 18.5 1480 3.5 0.8 w/air 3.5 18 1600 1100 1400 G1″ 40
3 22 1480 4.1 0.8 w/air 4 20 1600 1100 1400 G1″ 40
4 30 1480 6.1 0.8 w/air 5 26 1900 1500 1600 G1¼” 40
5 37 1480 7.3 0.8 w/air 7 26 1900 1500 1600 G1¼” 40
6 45 1480 10 0.8 w/air 9 30 2200 1700 1800 G1¼” 60
7 55 1480 12.5 0.8 w/air 10 35 2200 1700 1800 G1½” 60
8 75 1480 16 0.8 w/air 12 45 2200 1700 1800 G1½” 80
9 90 1480 20 0.8 w/air 18 54 3100 2300 2100 G2″ 80
10 110 1480 23 0.8 w/air 20 70 3100 2300 2100 G2″ 80
11 132 1480 27 0.8 w/air 24 72 3100 2300 2100 G2½” 80
12 160 1480 32 0.8 w/air 30 80 3200 2550 2100 G2½” 100
13 185 1480 39 0.8 w/air 35 100 3200 2550 2100 G2½” 100
14 200 1480 41 0.8 w/air 38 115 3500 2700 2300 G3″ 80*2
15 220 1480 44 0.8 w/air 42 130 3500 2700 2300 G3″ 80*2
16 250 1480 51 0.8 w/air 47 130 3600 2850 2300 G3½” 80*2
17 285 1480 56 0.8 w/air 50 150 3600 2850 2300 G3½” 80*2
18 315 1480 62 0.8 w/air 60 180 4100 2750 2300 DN108 80*100
19 355 1480 70 0.8 w/air 65 195 4100 2750 2300 DN108 80*100
20 400 1480 79 0.8 w/air 75 215 4300 2800 2300 DN125 100*120
21 450 1480 89 0.8 w/air 85 230 4300 2800 2300 DN133 100*120
22 500 1480 98 0.8 w/air 90 240 4900 2800 2300 DN159 100*120
23 560 1480 110 0.8 w/air 105 250 4900 2800 2300 DN159 100*120



ENAIR OIL FREE TREE STAGES （Low pressure and high pressure）



NO. Power (kw) speed(rpm) flow rate (m³/min) High pressure (Mpa) low pressure cooling way lubrication oil（L） L（mm） W（mm） H（mm） Air outlet inlet wire diameter(mm)
Low pressure high pressure (Mpa) option A B C D H
1 18.5 2970 1480 1.5 3 0.65-0.8 w/air 18 1600 1100 1200 G1″ 40
2 22 2970 2060 2 2.3 0.5-0.65 w/air 20 1800 1200 1250 G1″ 40
3 30 2600 2970 2.5 2.5 0.6-0.7 w/air 26 1800 1300 1300 G1″ 40
4 30 2700 1480 2.6 2 0.5-0.65 w/air 26 1800 1300 1300 G1″ 40
5 30 1480 1600 2.6 3 1-1.25 w/air 26 1800 1300 1300 G1″ 40
6 30 2970 2080 3.4 2 0.5-0.65 w/air 26 1800 1300 1300 G1″ 40
7 30 2200 2970 3.7 3 0.5-0.65 w/air 26 1800 1300 1300 G1″ 40
8 37 2800 1480 3.2 2 0.5-0.65 w/air 30 1850 1400 1350 G1″ 40
9 37 2970 1600 2.4 3 0.65-0.8 w/air 30 1850 1400 1350 G1″ 40
10 37 1480 1480 2.4 4 1.3-1.5 w/air 30 1850 1400 1350 G1″ 40
11 37 1480 1600 2.8 4 0.9-1.05 w/air 30 1850 1400 1350 G1″ 40
12 37 2800 2080 3.2 2.5 0.5-0.65 w/air 30 1850 1400 1350 G1″ 40
13 37 2200 2970 3.7 2.5 0.5-0.65 w/air 30 1850 1400 1350 G1″ 40
14 37 1480 1480 3.4 3 0.65-0.8 w/air 30 1850 1400 1350 G1″ 40
15 37 1480 2020 3.4 3 0.65-0.8 w/air 30 1850 1400 1350 G1″ 40
16 37 2970 2310 4.6 2 0.5-0.65 w/air 30 1850 1400 1350 G1¼” 40
17 45 2970 2080 3.4 3 0.65-0.8 w/air 36 2000 1600 1400 G1″ 40
18 45 2200 2970 3.7 3 0.65-0.8 w/air 36 2000 1600 1400 G1″ 40
19 45 2970 1480 4 2 0.5-0.65 w/air 36 2000 1600 1400 G1″ 40
20 45 2970 2020 3 4 1.3-1.5 w/air 36 2000 1600 1400 G1″ 40
21 45 2970 2310 4.2 2.5 0.6-0.7 w/air 36 2000 1600 1400 G1″ 40
22 45 1480 1480 4 3 0.65-0.8 w/air 36 2000 1600 1400 G1″ 40
23 55 2970 2970 6 2 0.5-0.65 w/air 39 2400 1600 1500 G1¼” 40
24 55 1480 2970 4 3 0.65-0.8 w/air 39 2000 1600 1400 G1″ 40
25 55 1480 2970 4.6 4 1.3-1.5 w/air 39 2400 1600 1500 G1¼” 40
26 55 2700 2050 5.5 2 0.5-0.65 w/air 39 2400 1600 1500 G1¼” 40
27 65 2700 2050 5.4 2.5 0.6-0.7 w/air 42 2400 1600 1500 G1¼” 40
28 65 2950 1480 6 2 0.5-0.65 w/air 42 2400 1600 1500 G1¼” 40
29 65 1480 1480 5.1 3 0.65-0.8 w/air 42 2400 1600 1500 G1¼” 40
30 65 2970 2970 7.2 2 0.5-0.65 w/air 42 2400 1600 1500 G1¼” 60
31 65 2970 2970 7 3 0.65-0.8 w/air 42 2400 1600 1500 G1¼” 60
32 65 2970 2970 5.9 2.5 0.6-0.7 w/air 42 2400 1600 1500 G1¼” 40
33 65 2970 2970 5.7 3 0.65-0.8 w/air 42 2400 1600 1500 G1¼” 40
34 65 1480 2970 5.5 3 0.65-0.8 w/air 42 2400 1600 1500 G1¼” 40
35 75 2970 2970 9.5 2 0.5-0.65 w/air 47 2800 1800 1600 G1½” 60
36 75 1480 1480 5 4 1.3-1.5 w/air 47 2800 1800 1600 G1¼” 40
37 75 2970 2970 5.4 4 1-1.25 w/air 47 2800 1800 1600 G1¼” 40
38 75 2970 1480 7 2 0.5-0.65 w/air 47 2800 1800 1600 G1¼” 60
39 75 2970 2970 7.1 2.5 0.6-0.7 w/air 47 2800 1800 1600 G1¼” 60
40 75 2970 2970 7 3 0.65-0.8 w/air 47 2800 1800 1600 G1¼” 60
41 90 1480 2970 9 3 1.36 w/air 55 3200 1800 1600 G1½” 60
42 90 1480 2970 7 4 0.8-1.05 w/air 55 3200 1800 1600 G1¼” 60
43 90 2950 1480 10 2 0.5-0.65 w/air 55 3200 1800 1600 G1½” 60
44 90 2970 2970 9.3 2.5 0.6-0.7 w/air 55 3200 1800 1600 G1½” 60
45 110 2970 2970 9.3 3 0.65-0.8 w/air 65 3300 1850 1650 G1½” 60
46 110 2970 1480 12 2 0.5-0.65 w/air 65 3300 1850 1650 G1½” 60
47 110 1480 2970 9 4 1.2-1.4 w/air 65 3300 1850 1650 G1½” 60
48 160 2970 1480 16 2 0.5-0.65 w/air 80 3500 1850 1800 G1½” 80
49 185 2950 2970 18 2 0.5-0.65 w/air 100 3500 1850 1800 G2″ 80
50 185 1480 1480 20 2 0.5-0.65 w/air 100 3500 1850 1800 G2″ 80
51 200 1480 1480 23 2 0.5-0.65 w/air 110 4000 2000 1800 G2″ 80
52 200 2970 2970 22 2 0.5-0.65 w/air 110 4000 2000 1800 G2″ 80
53 220 1480 1480 27 2 0.5-0.65 w/air 120 4000 2000 1800 G2½” 80
54 250 2970 1480 32 2 0.5-0.65 w/air 120 4000 2000 1800 G2½” 80
55 75+37 2970 2970 12 2 0.5-0.65 w/air 130 3300 1850 1650 G1½” 60
56 75+45 2970 2970 12 2.5 0.6-0.7 w/air 65 3300 1850 1650 G1½” 60
57 90+45 2970 2970 11.8 3 0.65-0.8 w/air 75 3300 1850 1650 G1½” 60
58 55+45 1480 2970 12.2 3 0.7-0.9 w/air 65 3300 1850 1650 G1½” 60
59 55+55 1480 2970 12 3 0.8-1.05 w/air 70 3300 1850 1650 G1½” 60
60 90+55 2970 2970 15 2 0.8-1.05 w/air 80 3500 1850 1800 G1½” 60
61 90+75 2970 2970 14.6 2.5 0.8-1.05 w/air 90 3500 1850 1800 G1½” 60
62 90+75 1480 2970 15.5 3.3 1.-1.25 w/air 90 3500 1850 1800 G1½” 60
63 90+90 1480 2970 15.5 4 0.8-1.05 w/air 130 3500 1850 1800 G1½” 60
