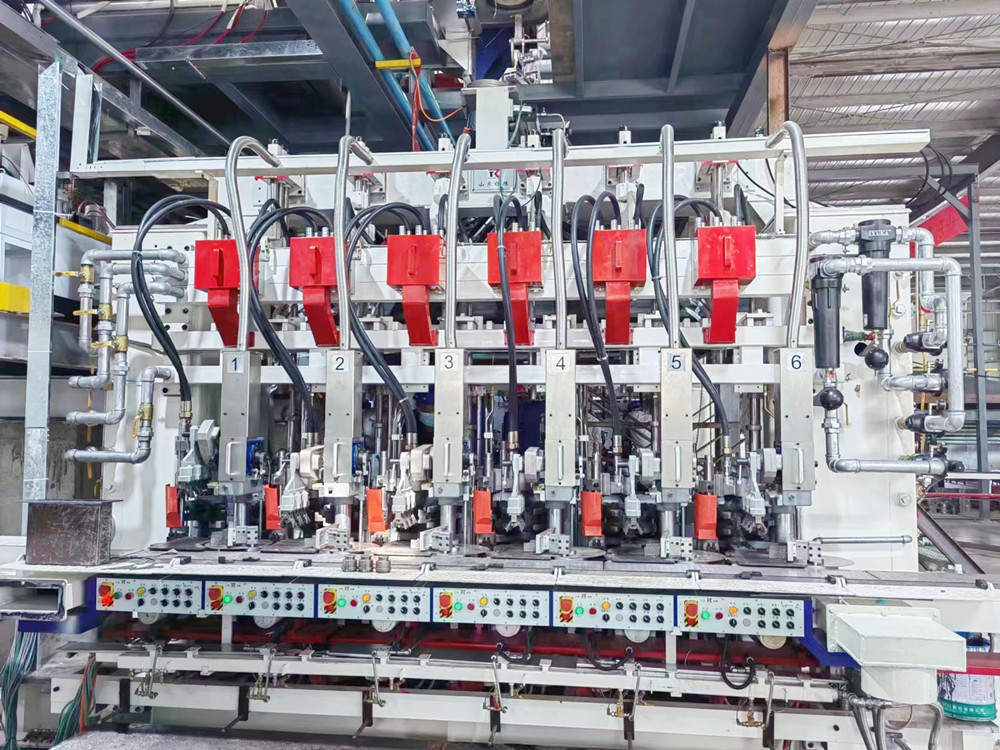

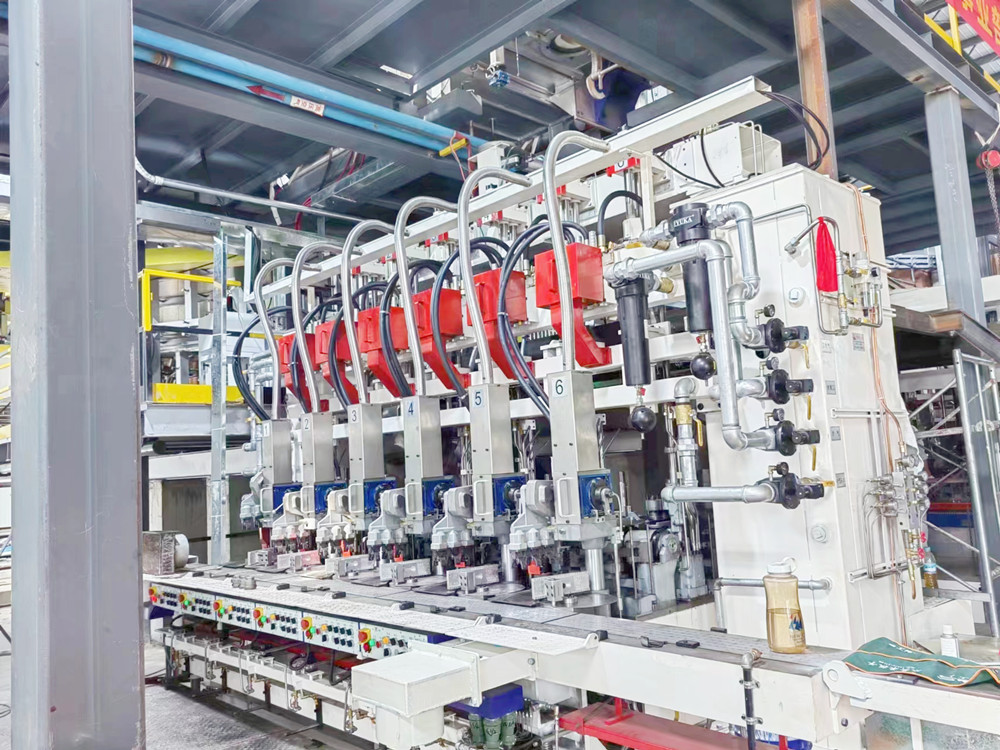

6 sections I.S. machine

Description

ENAIR I.S. Machine from 4 to 12 sections for glass factory

4 Main Series I.S. Machine

Parameter		(4 1/4 ”) 108mm					(5” )127mm
Mould Centre		S.G	D.G 108mm	T.G 76mm	Q.G 54mm	H.G 34mm	S.G	D.G 127mm	T.G 84mm	S.G
Blowing	Bottle Opening ømm Max Cut Dia of Finish	50	48	30	25	20	50	48	30	50
	Max Body Dia ømm	150	92	50	35	27	160	102	60	150
	Max Under Finish Height (mm)	315	279	34-100	60	52	345	299	180	360
Press-Blow	Bottle Opening ømm Max Cut Dia of Finish	90	70	38	25	20	110	83	50	130
	Max Body Dia ømm	150	92	50	35	27	160	102	60	200
	Max Under Finish Height (mm)	240	279	130	45	52	260	279	160	300

Parameter		(5 1/2 ”) 140mm				(6 1/4 ”) 159mm
Mould Centre		D.G 140mm	T.G 94mm	Q.G 76mm	H.G 42mm	S.G	D.G 159mm	T.G 108mm
Blowing	Bottle Opening ømm Max Cut Dia of Finish	48	35	30	24	50	48	48
	Max Body Dia ømm	110	70	50	35	160	130	90
	Max Under Finish Height (mm)	342	220	100	60	380	342	279
Press-Blow	Bottle Opening ømm Max Cut Dia of Finish	90	60	38	24	160	90	83
	Max Body Dia ømm	110	70	50	35	230	130	90
	Max Under Finish Height (mm)	228	200	130	60	325	305	257

Above 4 series IS machine can include follow servo mechanism

1. Servo Blank MOC

2. Servo Blow MOC

3. Servo Invert & Revert

4. Servo Take-out

5. Servo Bottle

6. Servo Funnel

7. Servo Blow Head

Super Jars IS machine 10-30L bottle, please write to us to get more information
